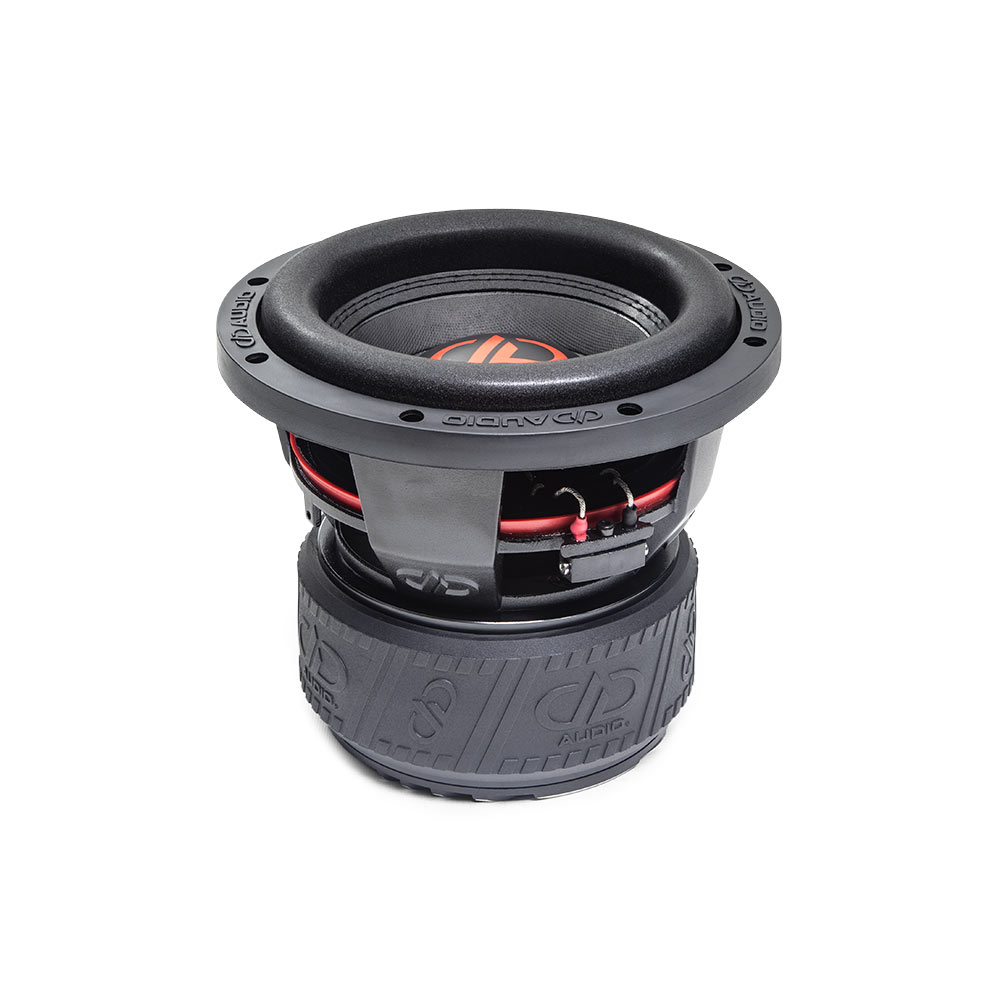

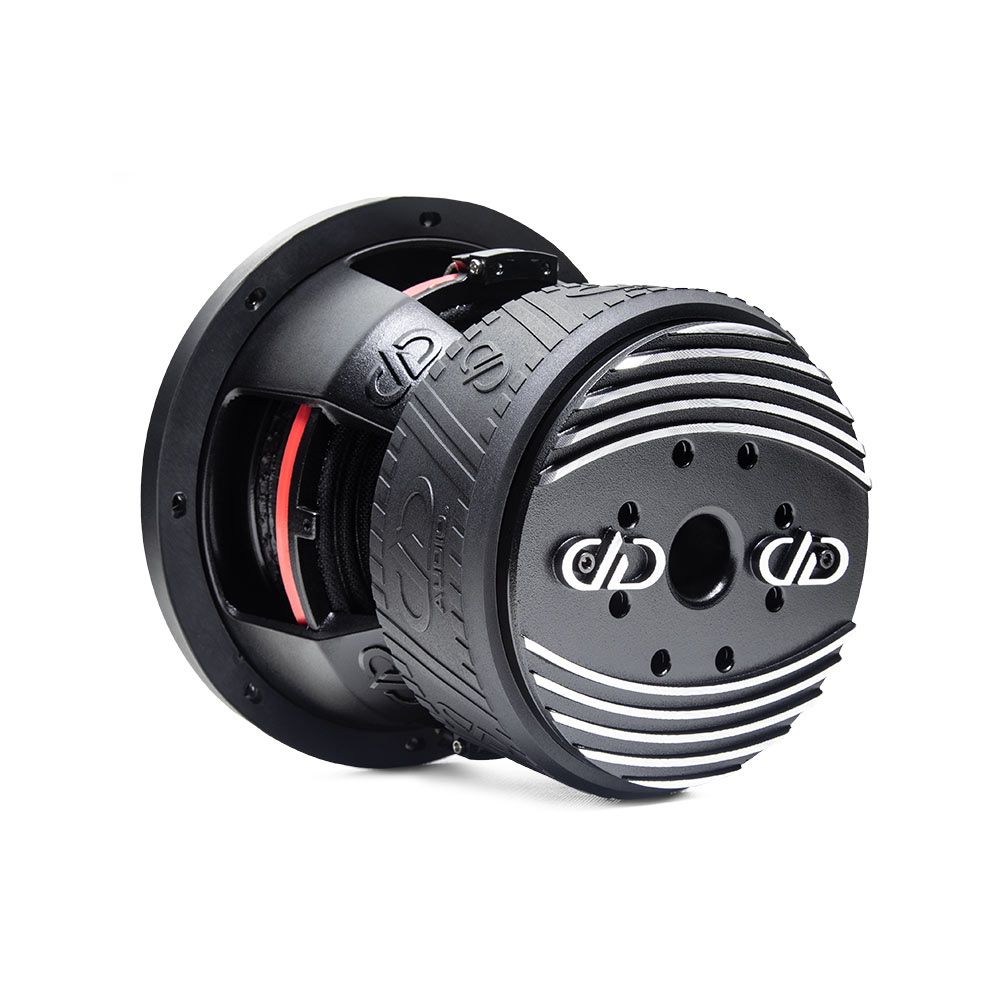

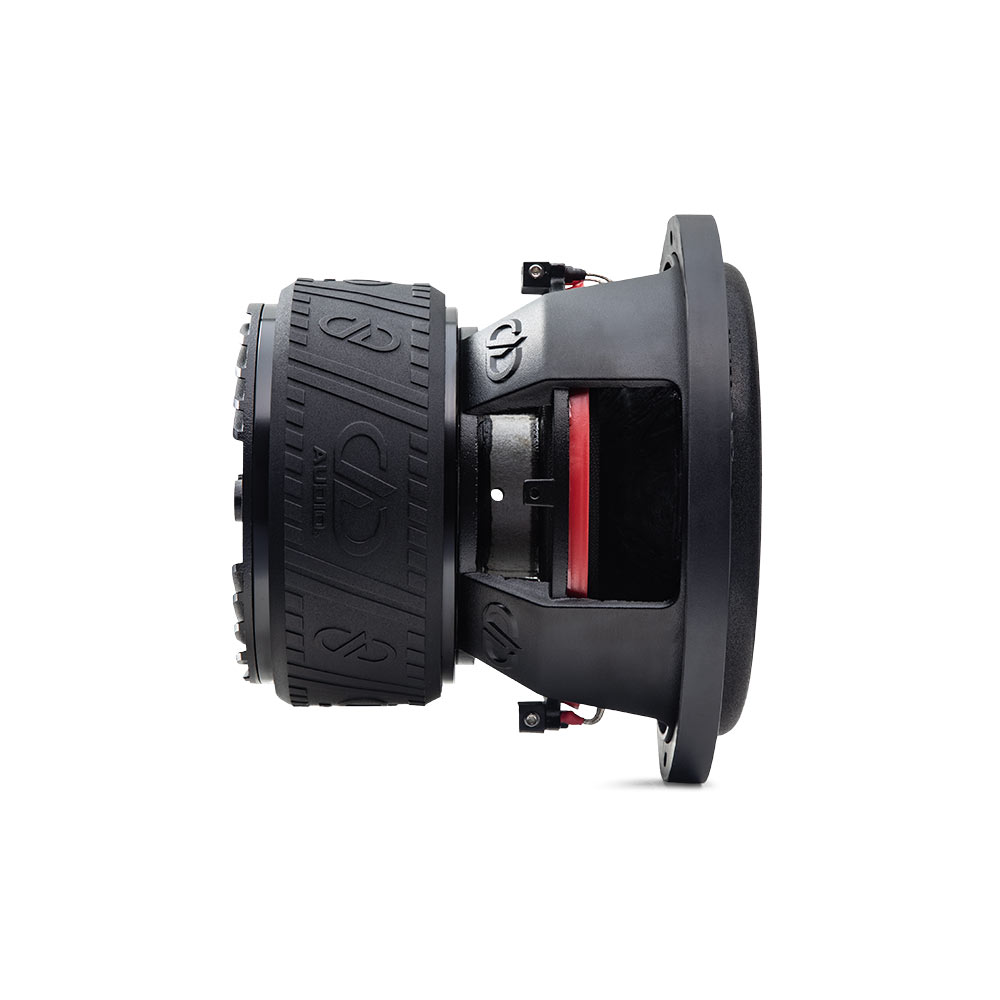

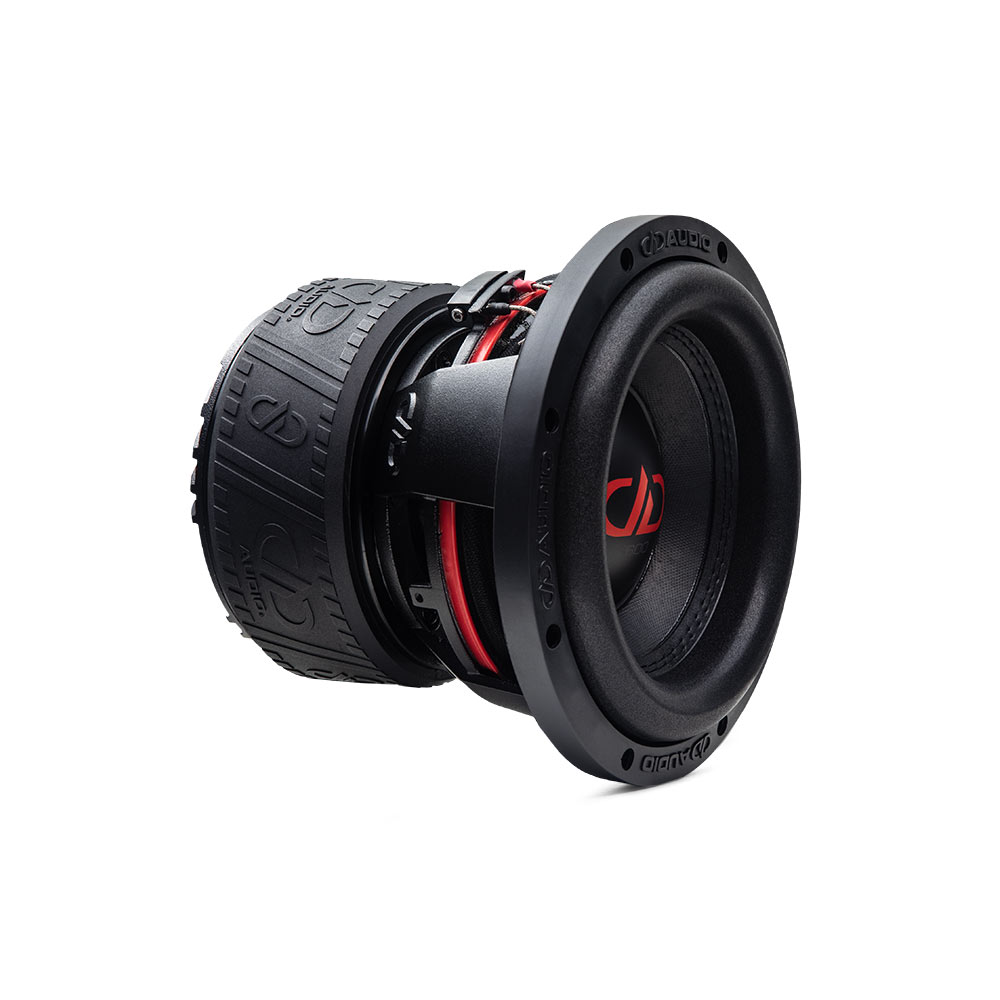

DD Redline series 608 Subwoofer

£209.00

LIKE A BOSS

Categories: ,

Series The 600 Series is a great entry point for a higher performance system design that keeps the vehicle as close to stock as possible. These subs will perform like a boss on as little as 300-600 Watts, meaning even multiple woofer systems can be driven with one moderate powered amplifier. This keeps electrical upgrades minimal with less added strain on the vehicle. With a high energy, double stack motor paired with a laminated triple layer poly cotton spider suspension the 600 Series works best with vented and multi-order enclosures.



Specifications

Speaker Size (In): 8
Speaker Size (MM): 203.2
Watts RMS: 300 – 600
Watts Peak: 1800
Impedance: D2 / D4
VCD (In): 2.5
VCD (MM): 63.5
Piston Diameter (In): 6 3/8
Piston Diameter (MM): 161.925
Fs (Hz): 38.36
Qms: 5.758
Qes: 0.4991
Qts: 0.4593
Vas (Liters): 7.377
Xmech (In): 2.51969
Xmech (MM): 64
Xmax (In): 0.511811
Xmax (MM): 13
Frame OD (In): 8 5/16
Frame OD (MM): 211.137
Frame OD w/ Gasket (In): 8 1/2
Frame OD w/ Gasket (MM): 215.9
Mounting Diameter (In): 7 3/8
Mounting Diameter (MM): 187.325
Mounting Depth (In): 5 3/4
Mounting Depth (MM): 146.05
Motor Diameter (In): 6 1/2
Motor Diameter (MM): 165.1
Motor Depth (In): 2 1/2
Motor Depth (MM): 63.5
Woofer Displacement (CuFt): 0.07
Woofer Displacement (Liters): 1.982
Ported Enclosure (CuFt): 0.75 – 1.25
Ported Enclosure (Liters): 21.238 – 35.396
Shipping Weight (Lbs): 17
Shipping Weight (Kg): 7.711
